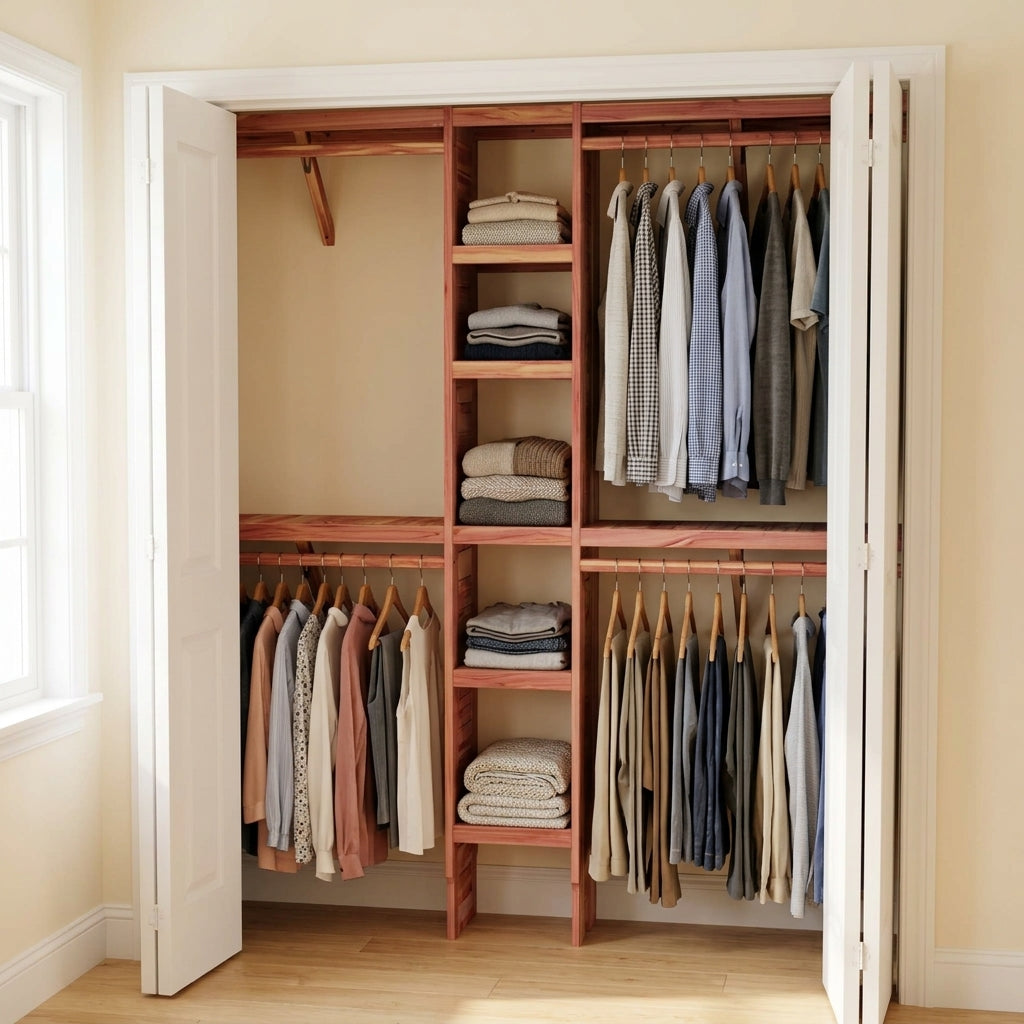

Deluxe Narrow Cedar Closet Wall Kit, Fits 5-10 Ft Wide Closets, 12.5 Inch Depth

Regular price $ 38783
Shelving Style: Solid Width: 6' (73.5")

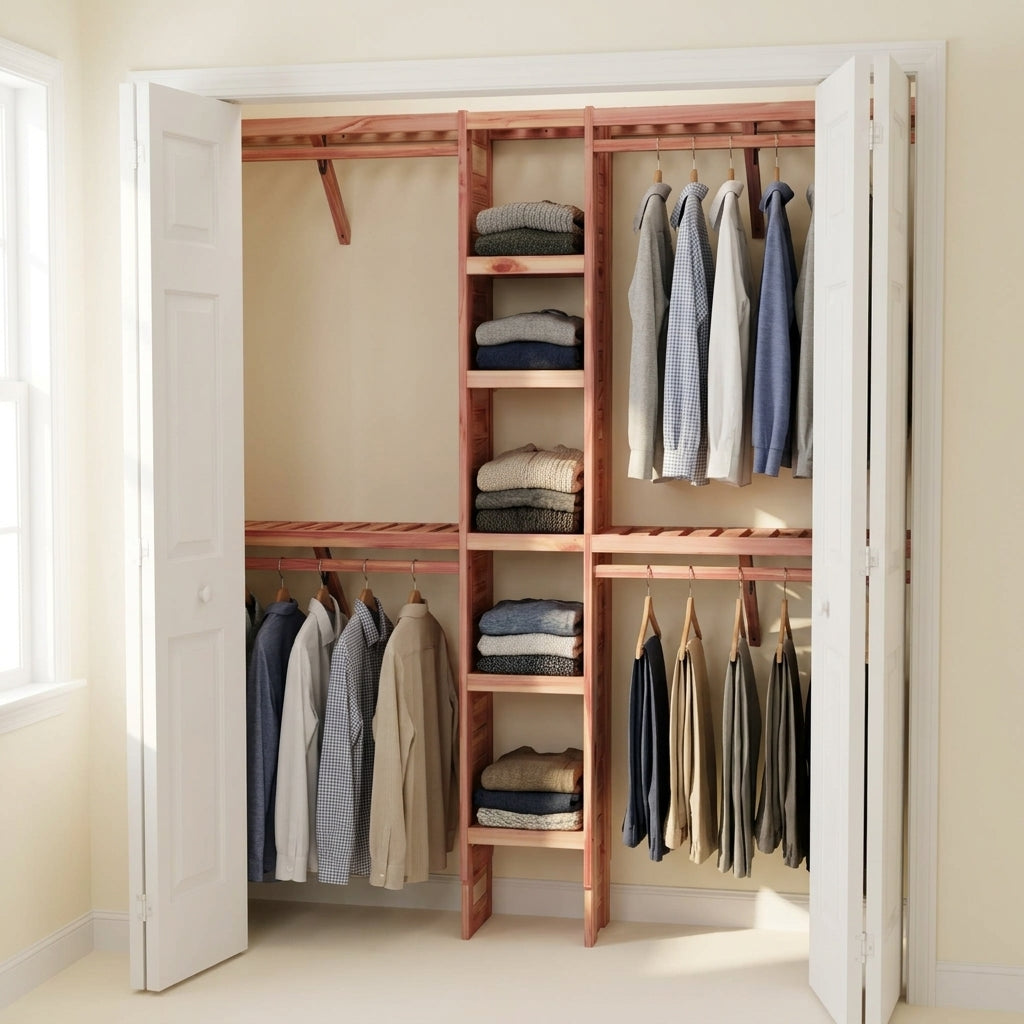

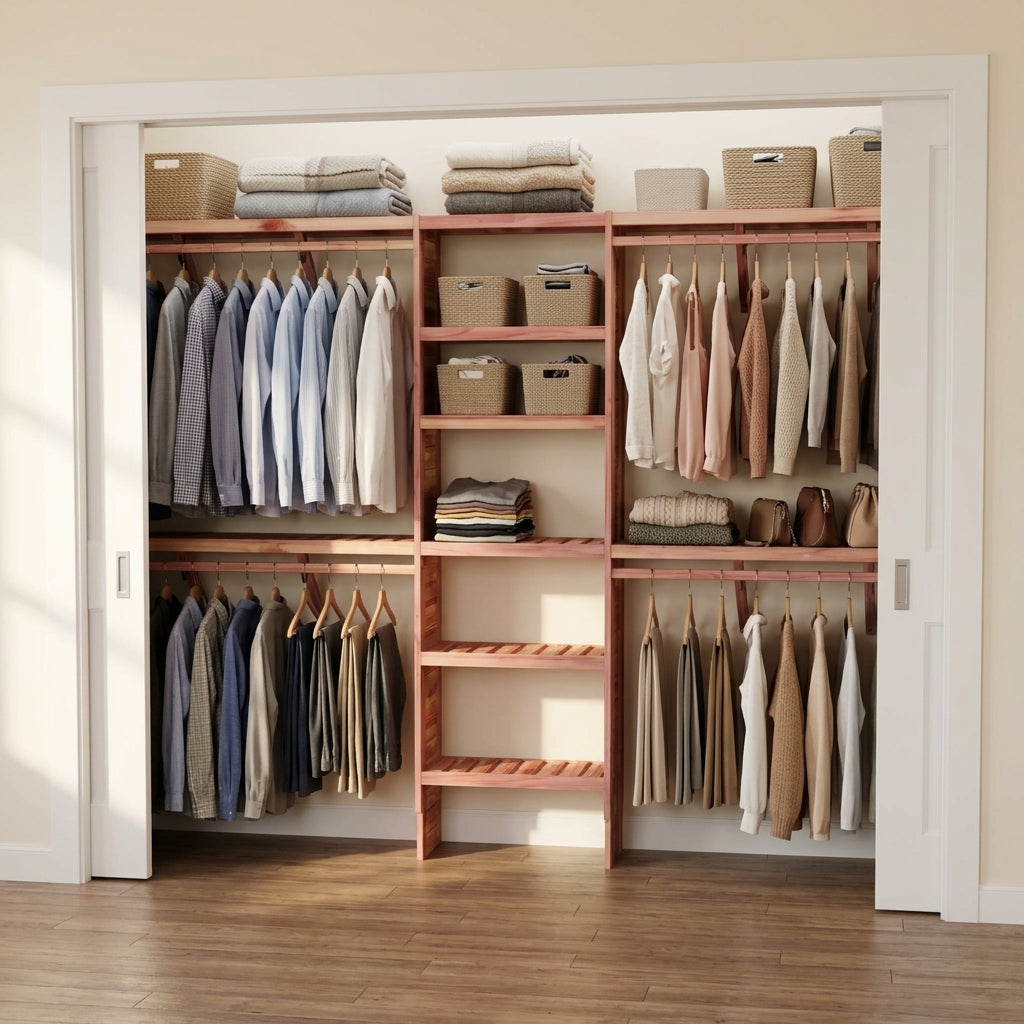

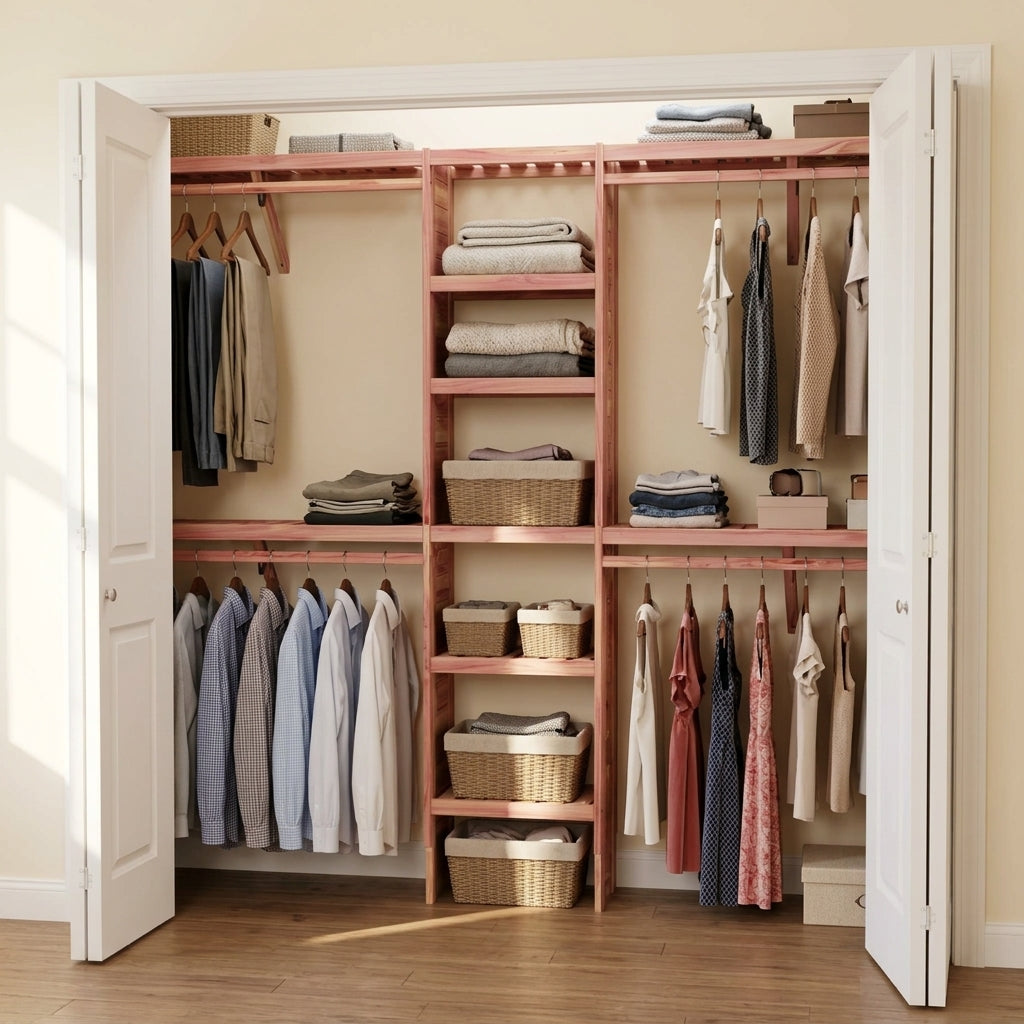

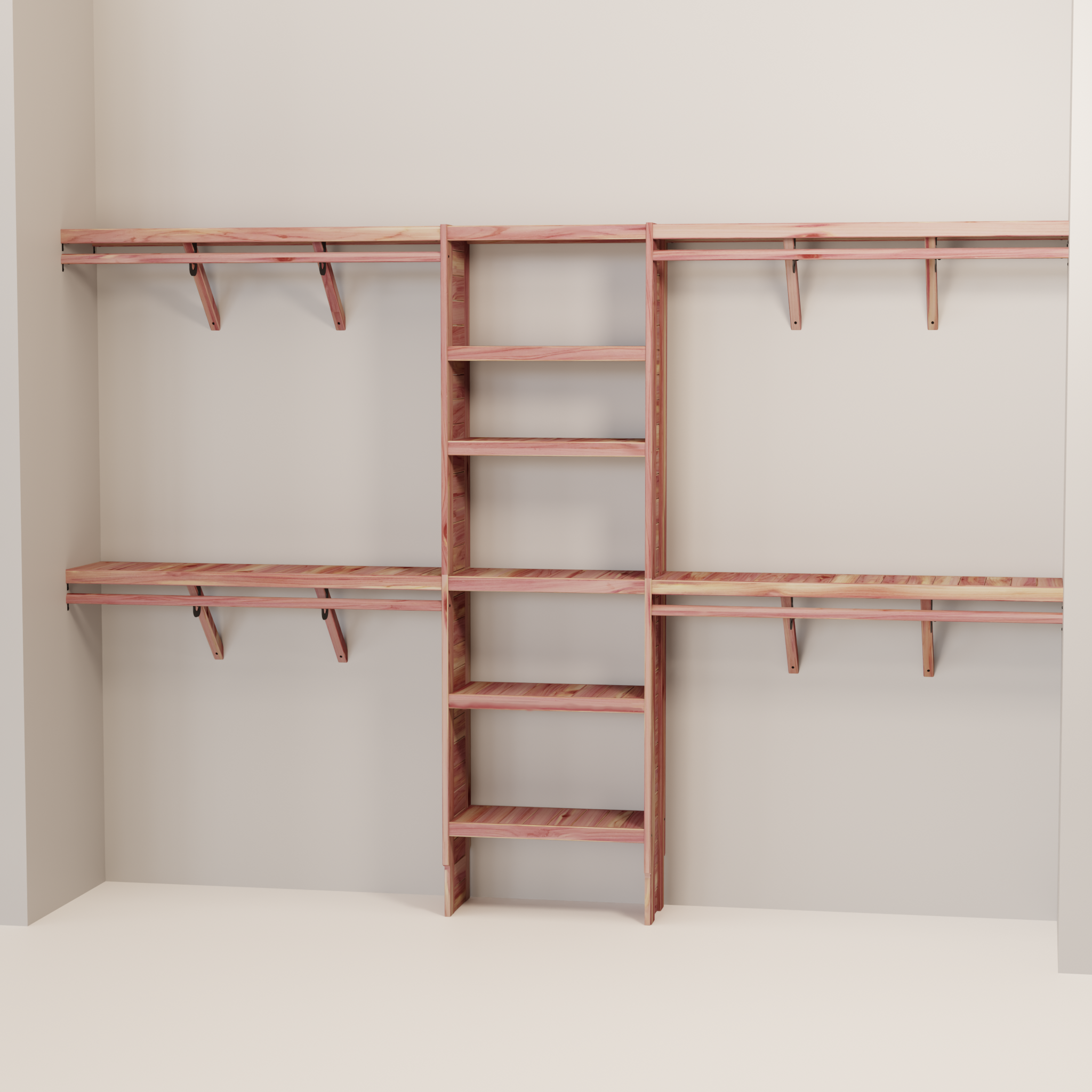

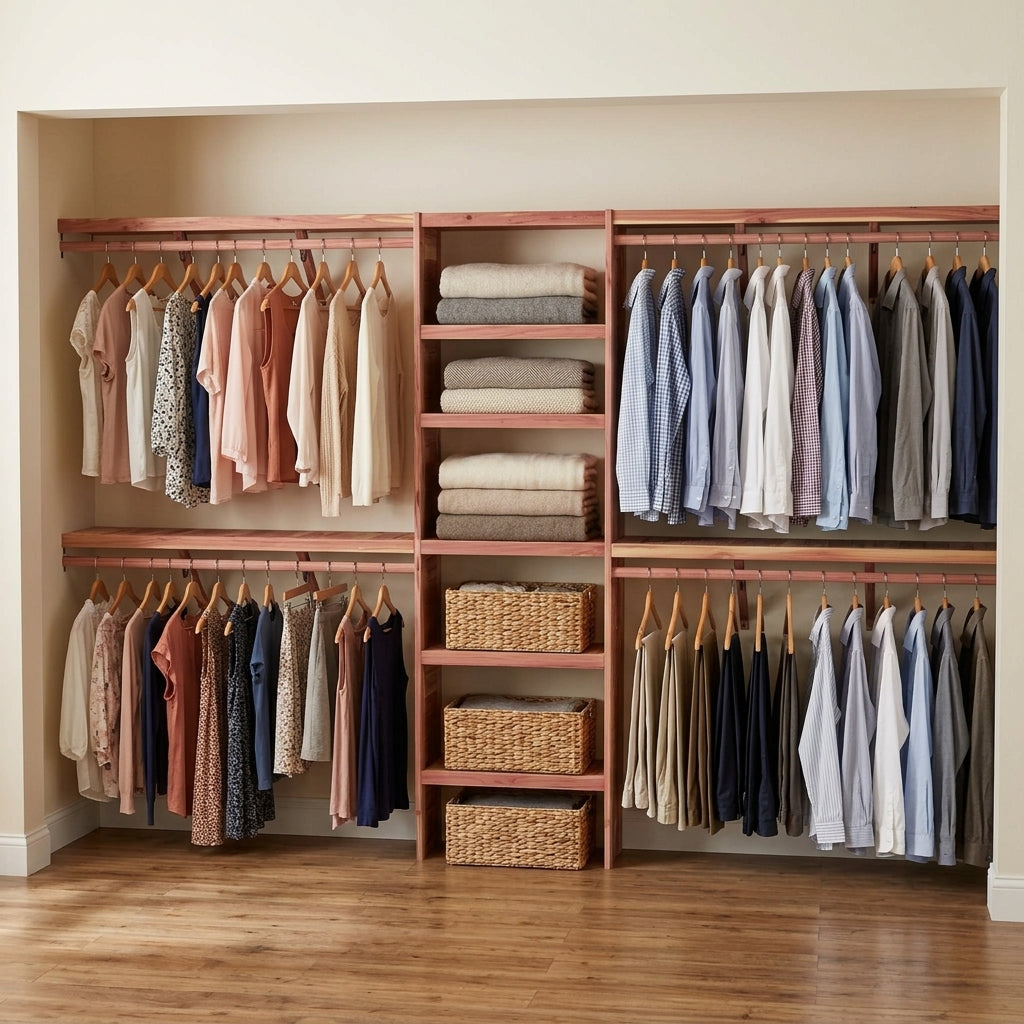

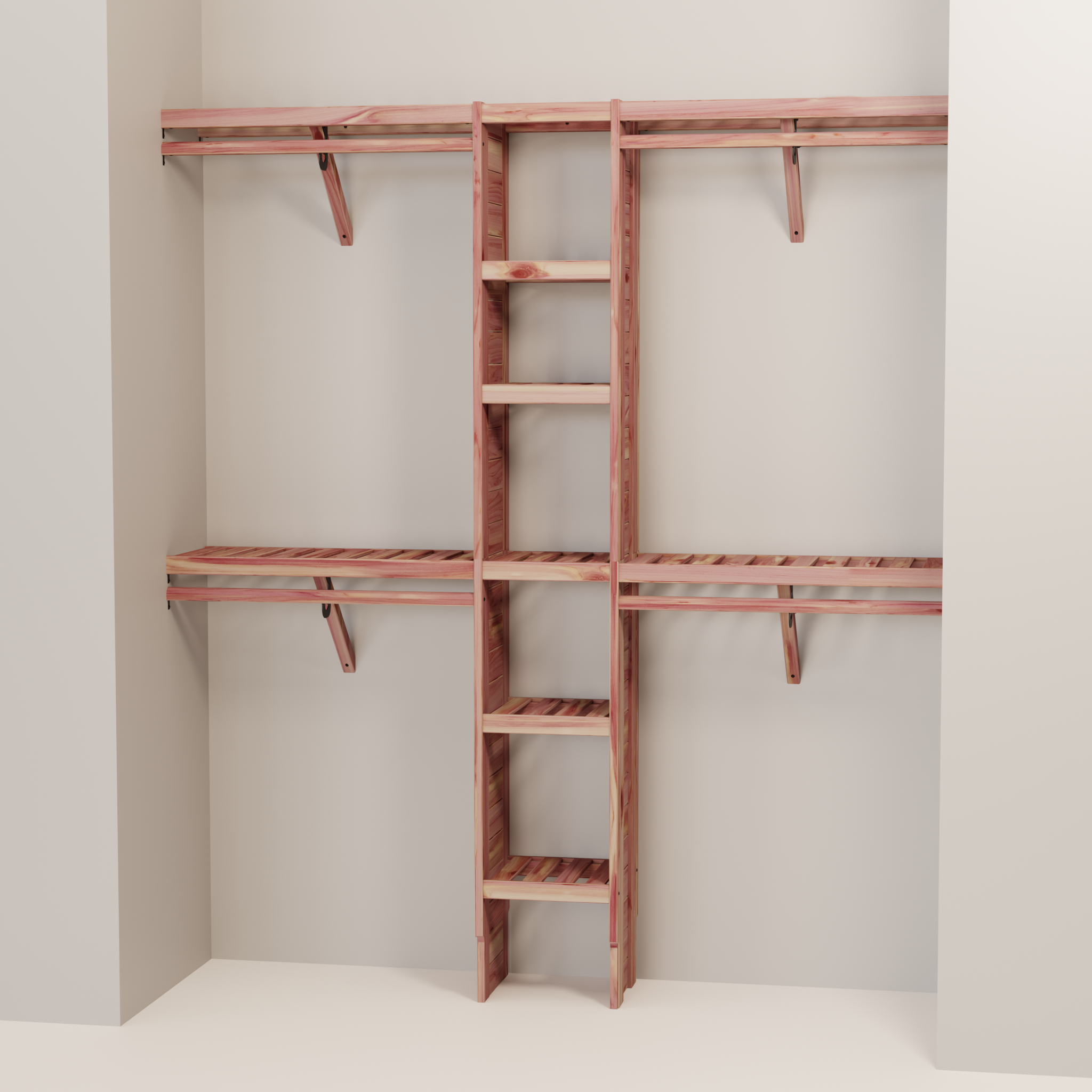

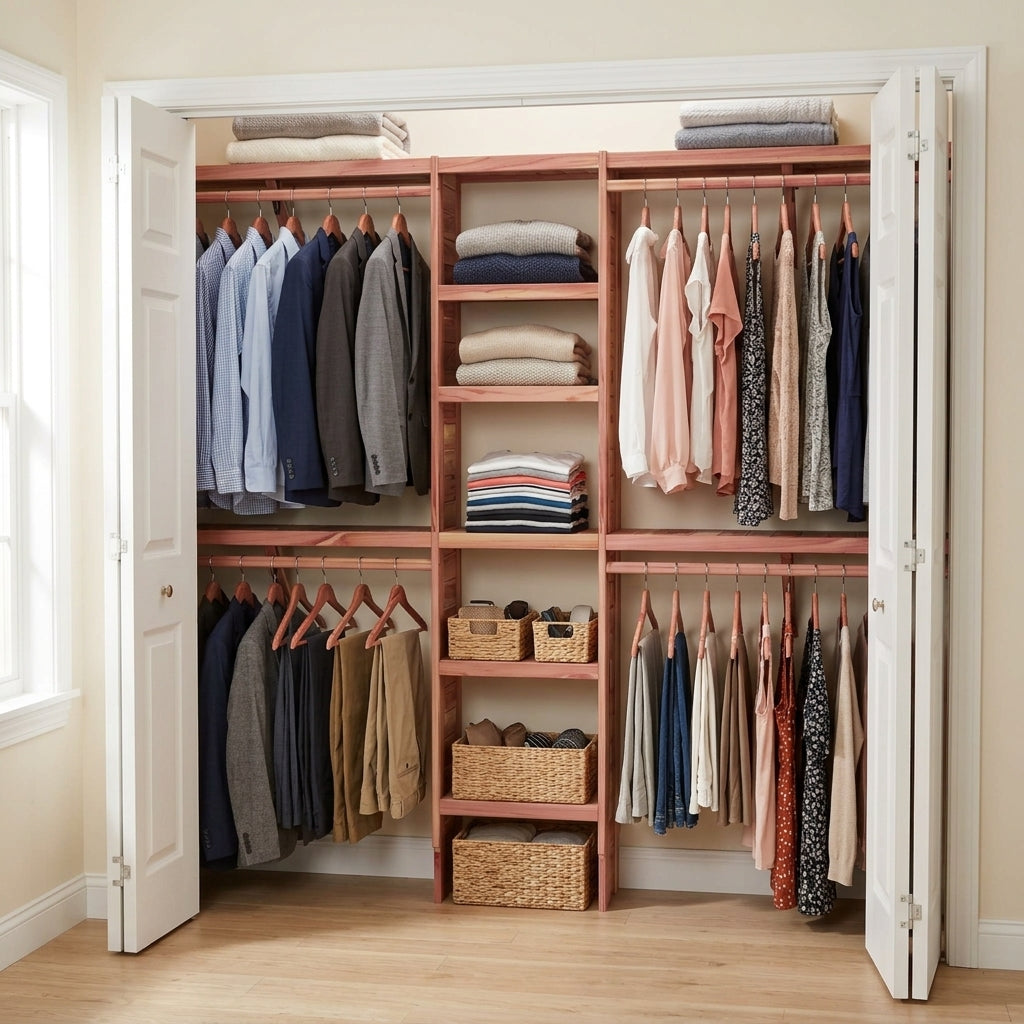

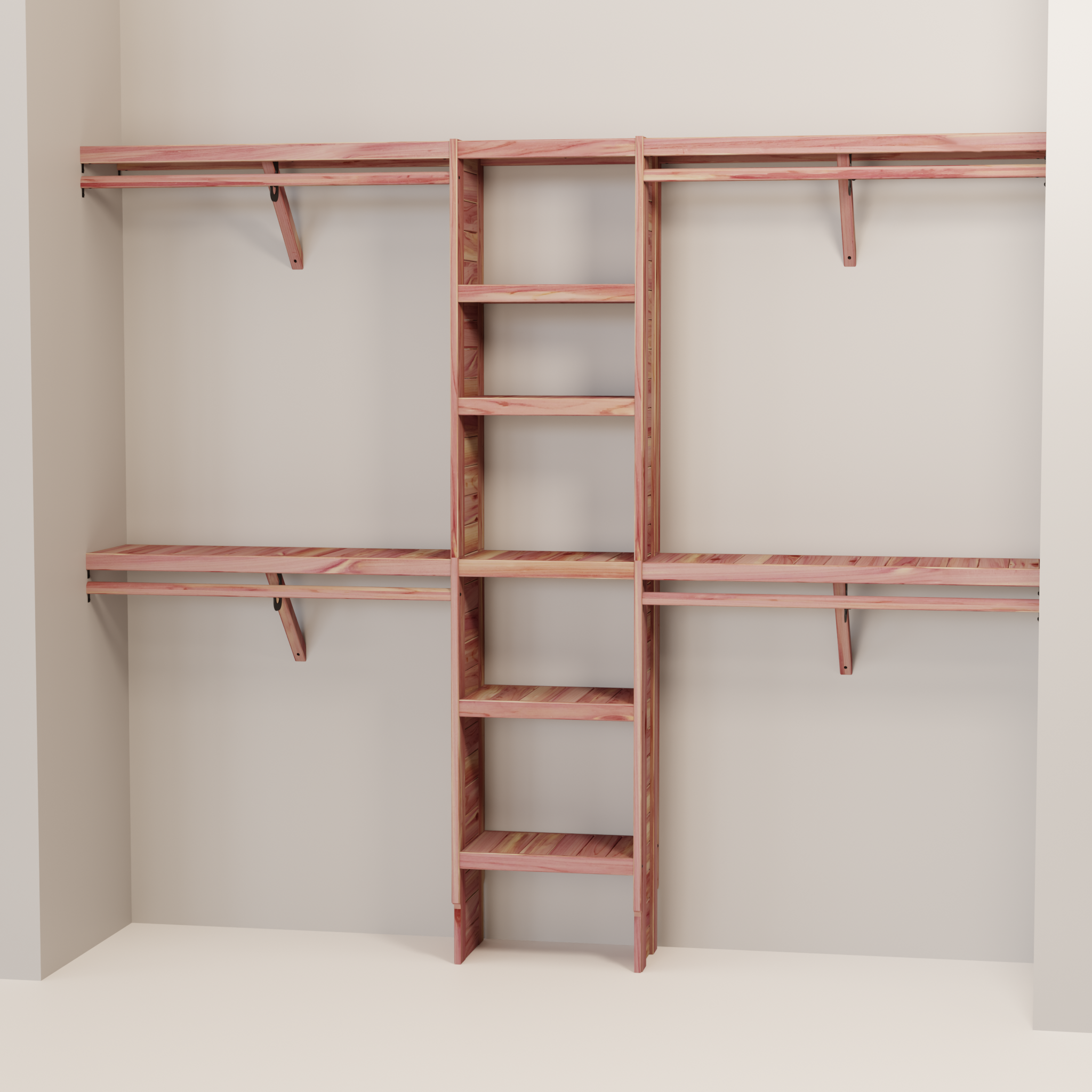

A complete cedar closet system with hanging rods, shelves, and a center cubby section, all in solid aromatic red cedar. This is our 12.5" system, built for closets that are too narrow for our standard depth.

Choosing your depth. Most closets fit our standard 14.5" kit, and we recommend it when you have the room. This 12.5" system is for narrower spaces. Hanging clothes need 20.15" from the back wall to the doors, since that is how far a shirt on a standard hanger reaches. If your closet measures 22.15" or deeper, select the standard 14.5" kit instead. The two depths are not compatible and do not connect to each other.

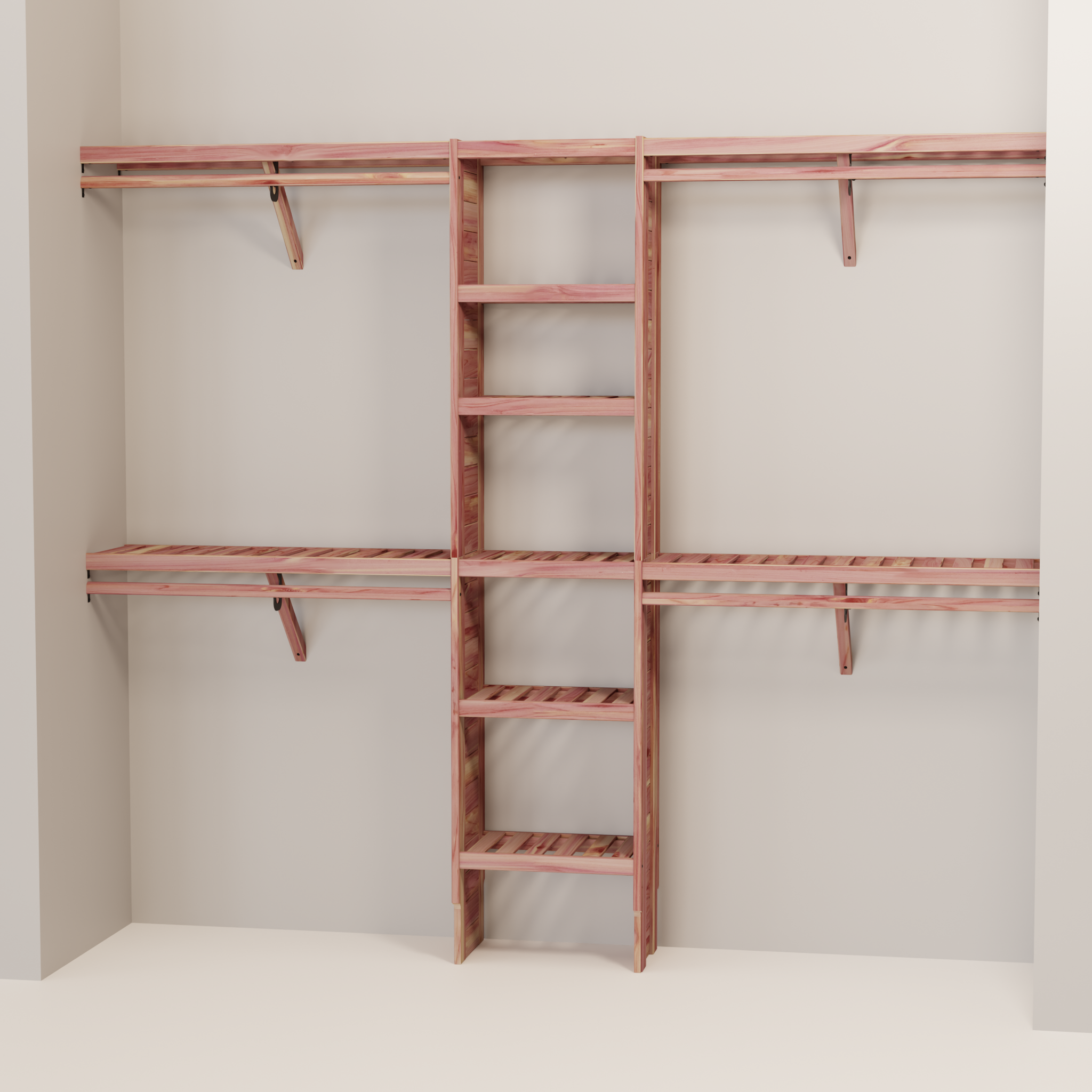

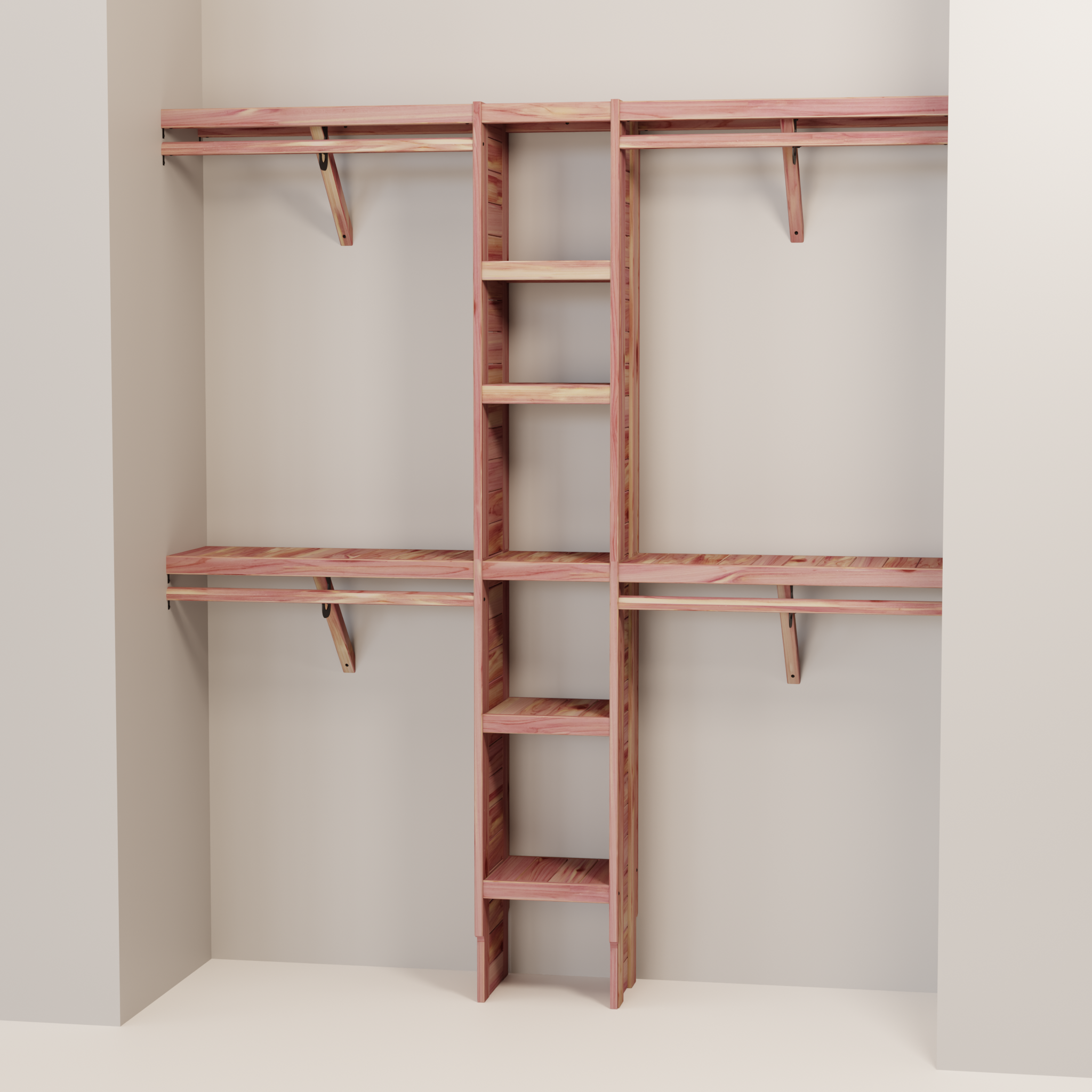

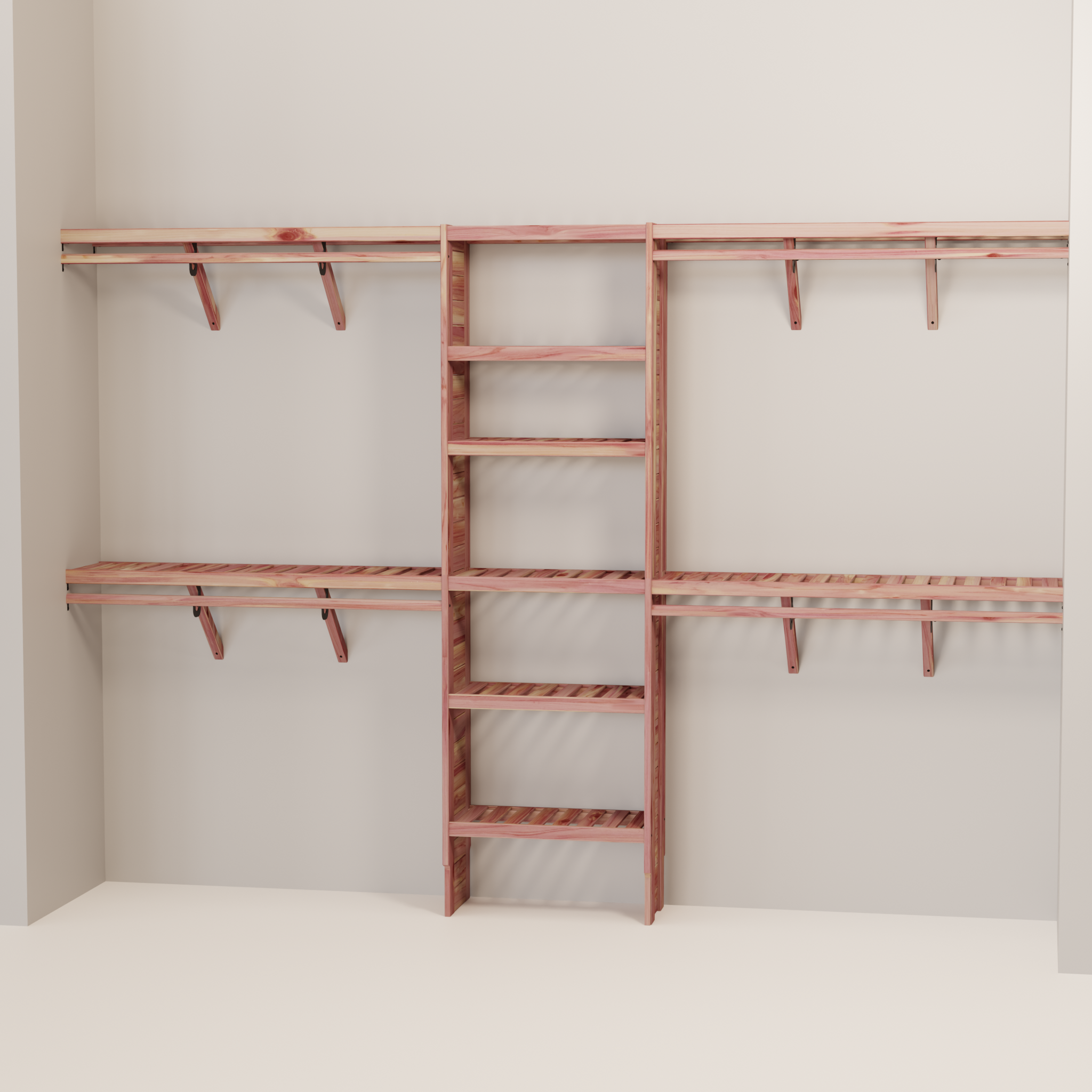

Choosing your width. Measure your wall and select the size that covers it. The 6' kit assembles to 73.5", the 8' to 97.5", and the 10' to 121.5". Trim the extra to fit your exact space. Example: If your wall measures 84", select the 8' kit and trim it down.

Choosing your height. All of our units assemble to a standard 7' or 84". The Deluxe version is the only style that can be trimmed to fit if your space is lower than 7'.

Most installations take 4 to 5 hours with a drill, a level, and tools you likely already own. Instructions are included, and you are welcome to read them before you buy.

Made in the USA. Milled in Kentucky from locally sourced aromatic red cedar.

More detailed information is in the FAQ below.

Product Information & FAQ

Product Information

Included With Purchase

Each Wall Kit will include:
- (X2) 12.5" Deluxe Cedar Side Panel Sets
- (x6) Cubby Shelves (Ordered Size/Style)
- (x4) Hanging Kit Shelves, enough for High and Low hanging (Ordered Size/Style)
- (x4) Hanging Kit Closet Rods (Ordered Size)
- (x4) J-Hooks (10' comes with 8)
- (x4) Angle Braces (10' comes with 8)
- Instructions & Hardware (Drywall Anchors are not included, but may be needed for your closet)

Package Dimensions

All Boxes are Flat Packed:

6ft Wall Kit

Box 1 Dimensions: 46" x 18" x 8" - 60-70lbs.

8ft Wall Kit

Box 1 Dimensions: 50" x 18" x 6" - 18-26lbs.

Box 2 Dimensions: 46" x 18" x 8" - 43-46lbs.

10ft Wall Kit

Box 1 Dimensions: 50" x 15" x 6" - 25-36lbs.

Box 2 Dimensions: 46" x 15" x 8" - 44-54lbs.

Natural Wood & Quality Assurance

Cedar is a natural product and each piece carries its own unique character — slight variations in grain, color, and texture are part of what makes solid wood beautiful.

If you are hiring someone to install or doing it yourself, confirm all parts have been received and are in good order before starting the install or hiring help.

If anything doesn't meet your expectations, and is covered under our warranty, our customer support team will make it right. Replacements are handled quickly and we're easy to reach.

Hours: 8:00AM - 4:30PM EST / Monday - Friday

Email: sales@northernkycedar.com

Phone: 606.742.2745

Chat: during business hours.

What to expect from natural cedar →

Design Help & Dimensions

Trims To Fit

All of our solid wood products can be trimmed to fit your space, including custom lengths and odd angles. Please keep the following guidelines in mind:

  - Height: Any Open or Deluxe unit can be ordered as a half-unit at 42" tall (please contact us directly to order). Deluxe can be trimmed to fit. Please note that Open panels are not designed to be cut down.


  - Width: Most customers trim one side of a hanging kit to fit their space.

Example:
If you purchase a 6' wall kit, the total width of the assembled unit is 73.5" (the panels add 1.5" to the total). Once you assemble and place the center cubby and hang the first hanging kit, you can measure and cut the remaining 30" hanging kit to fit your exact space.

Modular

All of the closet products are designed to attach to each other to make one continuous closet. Hardware is included to attach units together as well and our instructions show common and by design installs.

Two major design limitations to consider:

1. 12.5" and 14.5" do not connect to each other

2. shoe racks, wine racks, and cubes are standalone products



Design Help For This Product

Tools Needed [Not included]:
- Impact with a #2 Square Bit
- Level
- Stud Finder

We recommend the Deluxe version if you need to cut down the height. The open panel is not designed to be cut down.

A panel set or cubby is required if one or both ends of the hanging kits will not be attached to a wall.

Want to extend the cubby width? try a cubby add-on kit

Designing a walk-in closet? Our corner towers are perfect for tying everything together.

Need additional shelving?

Need additional hardware or accessories like J-Hooks or Angle Braces?

How Products Go Together
Design Help Page
You Can Install This Yourself (blog)

↑ Read these for more detail ↑

panel set or cubby is required if one or both ends of the hanging kits will not be attached to a wall.

Want to extend the cubby width? try a cubby add-on kit

Designing a walk-in closet? Our corner towers are perfect for tying everything together.

Need additional shelving?

Need additional hardware or accessories like J-Hooks or Angle Braces?

Dimensions / Instructions

FAQ: Compatibility

Why do some images show parts that are gray?

Parts shown in gray are intended to demonstrate how the product attaches to another unit. Any products shown in gray are not included with the main product.

What is the difference between 12.5" and 14.5" depth?

The 12.5" and 14.5" products are not compatible and are not designed to connect to each other.

We offer two separate closet depths, 14.5" for a standard closet and 12.5" for a narrow closet.

  • 14.5" is the depth of a Deluxe or Open 14.5" panel, shelves are 14" deep when not installed on a panel, and there must be at least 22.15" of total depth for a closet with hanging space if using a standard hanger.
  • 12.5" is the depth of a Deluxe 12.5" panel, shelves are 12" deep when not installed on a panel, and there must be at least 20.15" of total depth for a closet with hanging space if using a standard hanger.

What does Deluxe and Open mean?

We offer either the Deluxe or Open version for any 14.5" deep closet. Currently, we only offer the Deluxe version for 12.5" products.

In terms of functionality, Deluxe panels can be cut to fit the height of your space, whereas Open panels are not designed to be cut. Aside from that, the main difference is aesthetic and ventilation: the Deluxe is a solid panel, while the Open design allows for better air circulation.


Should I go with Solid or Ventilated shelves?

Both styles of shelving serve the same purpose and share the same dimensions. The ventilated style allows for more air circulation, while the solid style prevents small items from falling through.

FAQ: Tools and Install

What tools will I need?
Tools you'll need

These cover a typical install:

  • Safety glasses
  • Dust mask or respirator
  • Hammer
  • Level
  • Power drill or impact driver
  • Drill bits to fit your drill or driver (most installs need a 1/16" and a 1/8")
  • #2 square drive bit (an extended version makes things much easier)
  • Stud finder
  • Sandpaper (80 to 120 grit works well)
Tools you might need

Depending on your space and how much trimming you do:

  • A saw — any handsaw will do, but if you're comfortable with power tools, a table saw, circular saw, or miter saw makes clean work of it. You will need a miter saw that can slide and cut 12.5" or 14.5" inches.
  • An oscillating multi-tool — handy for a few quick cuts; a sharp blade glides right through cedar.
  • Step stool or short ladder (for upper shelves and hanging rods)
  • A couple of clamps (handy for steadying a panel solo or holding a piece while you cut)
  • Painter's tape (for marking stud lines on the wall, and a strip over a cut line cuts down on tear-out)
  • A small container or tray to keep your hardware from wandering off mid-project
  • Tape measure
  • Pencil, pen, or marker (pencil is best)
  • A square or ruler — or any straight edge for marking clean cut lines
  • Drywall anchors

None of this is exotic. If you've tackled a basic home project before, you already own most of it.

You can install this yourself - Show more...

Do I need to find studs?

Anchor into studs where you can for the strongest install — our hardware can mount either into studs or with drywall anchors where a stud isn't available. The instructions cover both.

How long does installation take?

2-3 hours on most single units - depends on prep-work, experience, and tools. If you have help, the time can be half that.

Plan for 6-8 hours or more if doing a full walk-in closet or tongue and groove.

Are the instructions available before I buy?

Absolutely, dimensions and instructions below:

FAQ: Orders and Shipping

How long does standard shipping take?

Most orders ship within 1 to 3 business days after the order is placed and typical transit time to most regions is also 1 to 3 business days. We offer free shipping on all Shoe racks and any order over $200.

Transit time depends on the carrier - we use UPS, FedEx, and various LTL carriers. If you have a certain carrier preference please let us know in the notes of your order if you qualify for free shipping.

Can I order online and pick up in store?

Yes. We offer discounts for local pickup and we also sell a #2 grade for local pickup only. If you are interested in either, please reach out to us. We can send you a cart via email with the discount and pickup instructions.

What if my order arrives damaged?

Send us an email with your order number and photos of the damage. We'll arrange a replacement or refund, no return shipping required.
